ADCS · Upstream
Attitude control that scales with your satellite
Four VSCMG in a patented linear configuration, driven by our own attitude determination and control software.
Layout
Patented linear configuration
Two VSCMG lying in one direction and two more on top at right angles: together they fill a cubic volume with no empty space. Each one drives a gimbal and a variable-speed wheel: 8 motors and 8 degrees of freedom that the software combines to deliver the torque the mission needs. Large or small, the layout scales with the satellite and keeps the same advantages.
VSCMG: variable-speed control moment gyroscope. Unlike a classic CMG, the wheel speed can also change.
- Every bit of volume usedThe four modules fill the cube with no gaps: more torque in the same space.
- Keeps pointing if a unit failsWith eight degrees of freedom there are spare actuators to cover a failure.
- Fewer singularitiesThe variable-speed wheel adds one more degree of freedom to get out of them without losing control.
How it works
A closed loop, all ours
The command comes in, our software computes the rate of each gimbal and each wheel, and the sensors close the loop.
Orientation to hold, or a point on Earth to track
Attitude and rate estimated from the sensors
→ attitude and rateTorque needed to reach the target
→ torqueRate of each gimbal and each wheel, avoiding singularities
→ 8 motor commandsPatented linear layout
Turns and holds its attitude
- DetumblingStops the satellite spinning after separation from the launcher.UnsolvedSolved
- PointingSun, nadir or a point on Earth, with smooth switching between modes.UnsolvedSolved
- SingularitiesThe steering law detects them early and avoids or crosses them without losing control.UnsolvedSolved
- SaturationMonitors stored momentum and dumps it before reaching the limit.UnsolvedSolved
- Safe modeAfter a fault, brings the satellite to a stable attitude and waits for ground commands.UnsolvedSolved
Validation
From the bench to orbit
- 2026Tested on air bearingFull loop validated on the bench, with the real hardware.Done
- 2027First flight modelIntegration and qualification tests.Planned
- 2028LaunchFirst in-orbit demonstration.Planned
Blog
Engineering notes

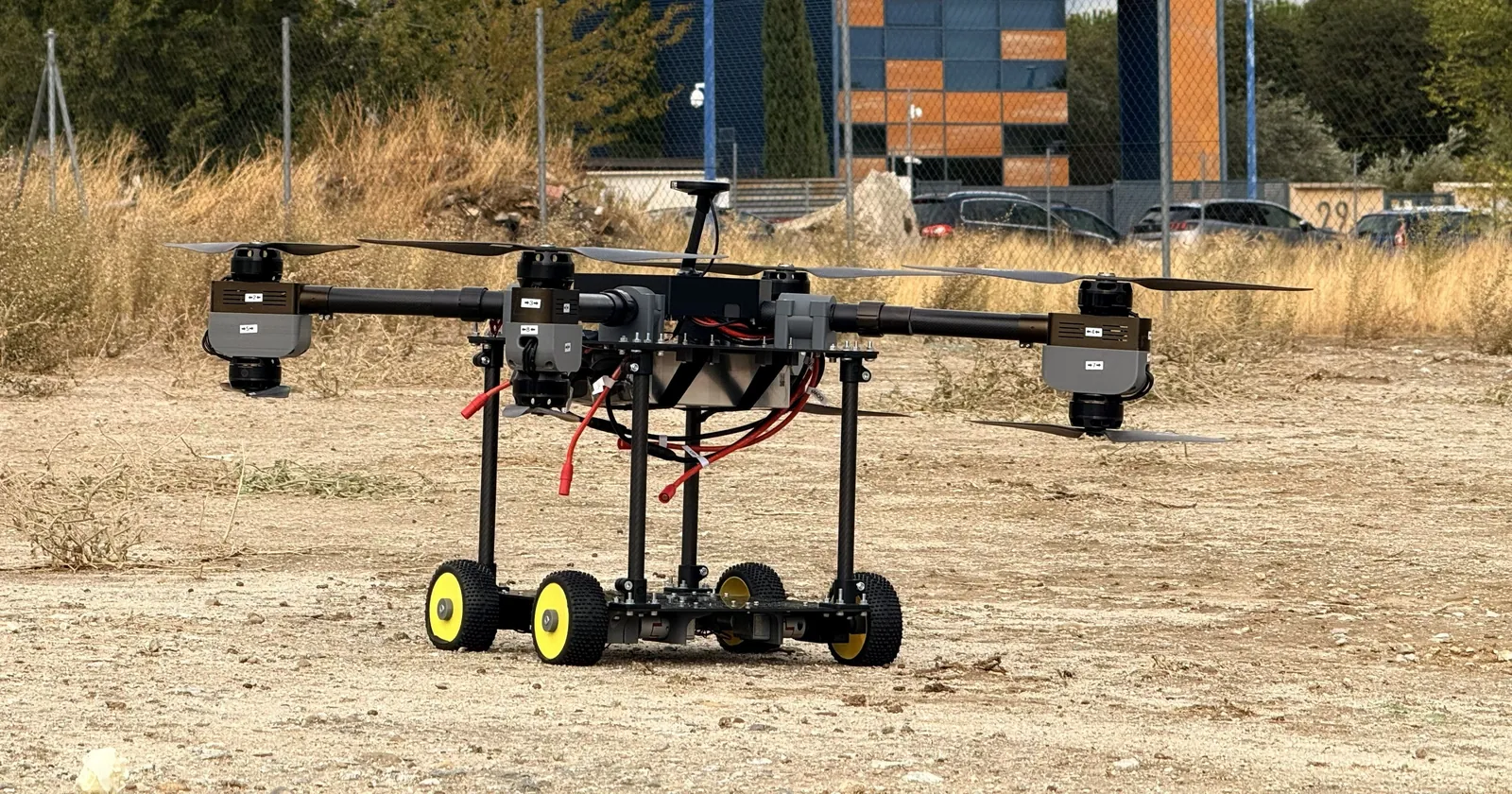

Logistic Flying Car: the vehicle that flies and drives the last mile
Our delivery prototype flies between destinations and switches to autonomous driving where flying is not allowed. Over 23 km on one charge.
Read

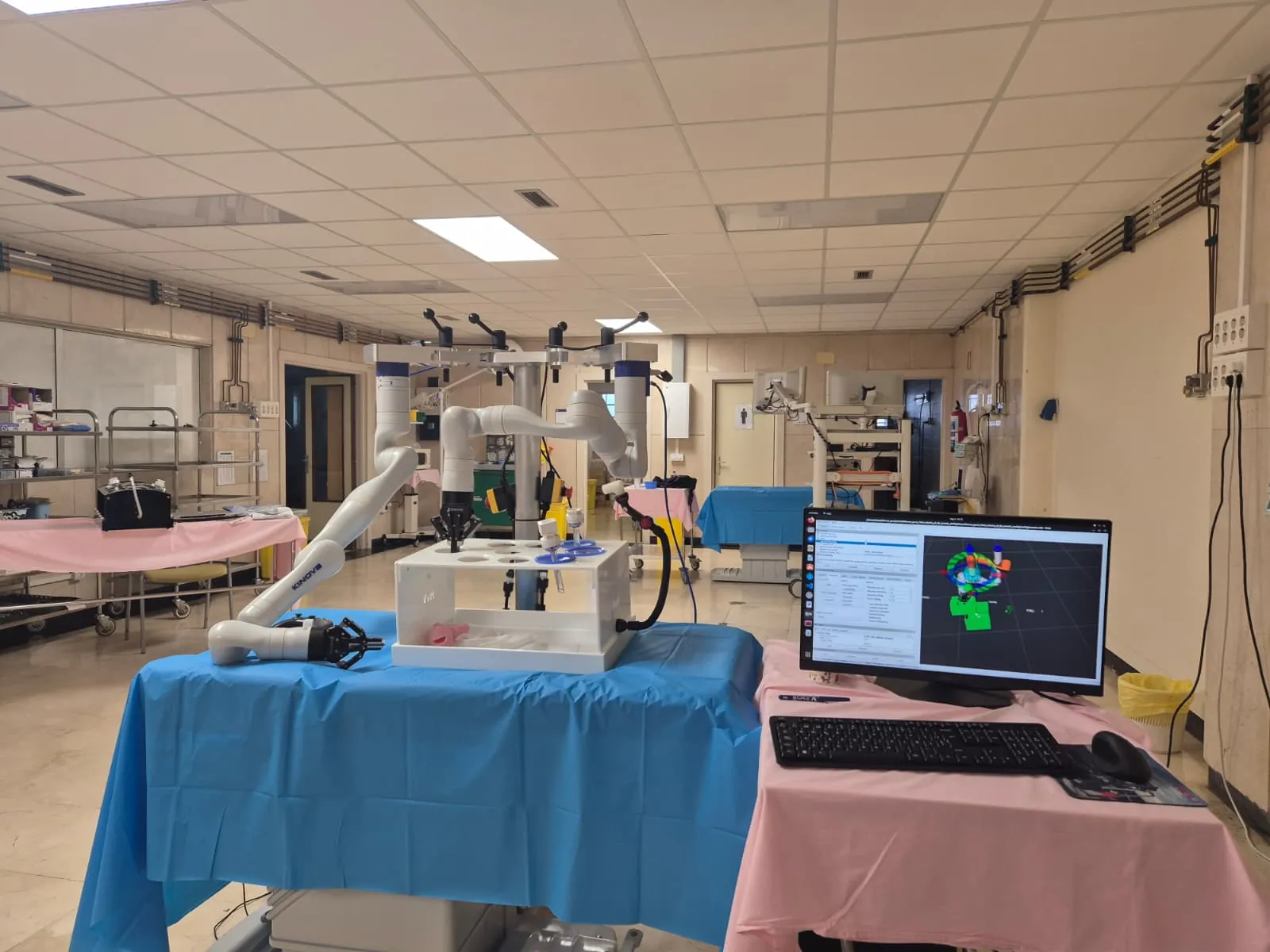

Autonomous laparoscopic surgical robot
A dual-arm robotic platform that sutures, cuts and measures autonomously in minimally invasive surgery, always under the surgeon’s supervision.
Read
Sanzar Group successfully completes its incubation at ESA BIC Madrid
The Final Review in April 2026 closed two years at ESA BIC Madrid, in which Sanzar Group took its patented ADCS from TRL2 to TRL6.
ReadRequest the datasheet
Interfaces, sensors, modes and full performance. Tell us the mission and platform and we will send it with a first assessment.
